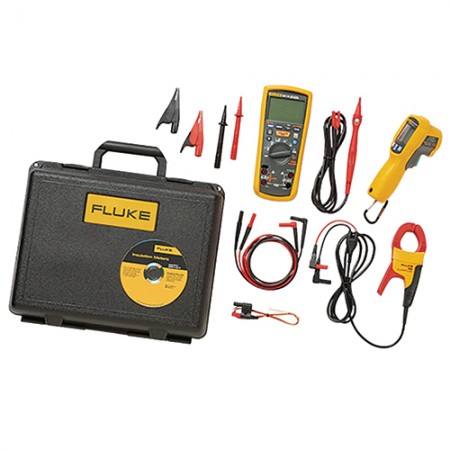

The Fluke 1587 FC Advanced Electrical Troubleshooting kit is an insulation resistance test kit that is for troubleshooting and preventative maintenance applications. This kit contains the Fluke 1587 FC Insulation Multimeter, the i400 AC Current Clamp, and the 62 MAX+ infrared thermometer.
The Fluke 1587 FC Insulation Multimeter features four powerful new diagnostic functions through the Fluke Connect Measurements app:
- Pi/DAR timed ratio tests with TrendItâ„¢ graphs identifies moisture and contaminated insulation problems faster
- Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time
- Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
- Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field with Fluke Connect® Assets
The Fluke i400 AC CurrentClamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry standard safety ratings.
The Fluke 62 MAX+ infrared thermometer is everything you'd want in your toolbox. Small in size, extremely accurate and yet easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop.
Includes:
Fluke 1587 FC 2-in-1 Insulation Digital Multimeter, Fluke i400 Current Clamp, and Fluke 62 MAX+ Infrared Thermometer.
Features:
- The Fluke 1587 FC easily performs insulation tests and a wide-range of digital multimeter tasks
- Use the Fluke i400 and Fluke 1587 FC to accurately measure AC current without breaking the circuit
- The Fluke 62 MAX+ Infrared Thermometer measures from -30C to 650C (-22F to 1202F), is extremely accurate, and has an IP54 rating for water resistance and dust proof
Product Codes | |
|---|---|
| Mfr Part No: | FLUKE 1587 FC |
| ECCN: | 3a992 |
| SCHEDULE B CODE: | 9030.31.0000 |
Fluke 1587 FC Insulation Multimeter Weight: 550 g (1.2 lb)Dimensions: 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)Batteries: Four AA batteries (NEDA 15A or IEC LR6)Maximum voltage applied to any terminal and common: 1000 VStorage temperature: -40°C to 60°C (-40°F to 140°F)Operating temperature: -20°C to 55°C (-4°F to 131°F)Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)Relative humidity: Noncondensing 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F) 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F) 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrumentRadio frequency communication: 2.4 GHz ISM BandRadio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE Fluke i400 AC Current Clamp Maximum conductor diameter: 32 mm (1.25 in)Maximum conductor size (busbar): 750 MCMOutput cable length: 1.5 m (59 in)Nominal current range: 400 AContinuous current range: 1 A - 400 AMaximum non-destructive current: 1000 ALowest measurable current: 1 ABasic accuracy: 2% + 0.06 A (45-400 Hz) | (% reading + floorspec)Useable frequency: 5 Hz - 20 kHzOutput level(s): 1 mA/AShrouded banana plugs: Yes Fluke 62 MAX Infrared Thermometers Weight: 255 g (8.99 oz)Dimensions: 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)Operating temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F), (without battery)Operating humidity: 10 % to 90 % RH non-condensing at 30 °C (86 °F)Operating altitude: 2000 m above mean sea levelStorage altitude: 12,000 m above mean sea levelIP rating: IP 54 per IEC 60529Drop test: 3 mVibration and shock: IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 msEMC: EN 61326-1:2006 EN 61326-2:2006Power: AA batteryBattery life: 8 hours with laser and backlight onTemperature range: -30 °C to 650 °C (-22 °F to 1202 °F)Spectral response: 8 to 14 micronsEmissivity: 0.10 to 1.00Optical resolution: 12:1 (calculated at 90% energy)Display resolution: 0.1 °C (0.2 °F)Repeatability of readings: ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater
