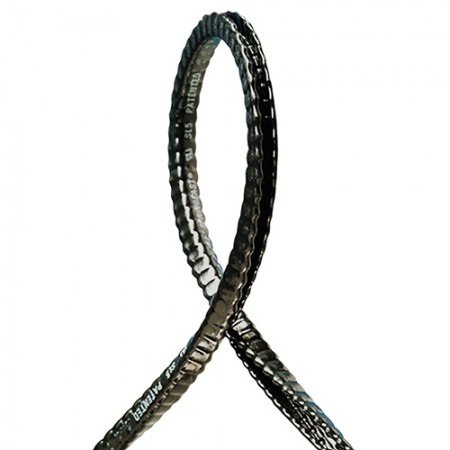

Spring-Fast® SL Series plastic trim has a low profile and is encapsulated with a fusion bonded nylon substrate that offers superior abrasion resistance. The soft polymer cushion provides a soft surface to protect wire and cables while its strong gripping strength holds in severe shock and vibration environments while maintaining 4-axis flexibility.
This SL series plastic trim (SL1-0025-) fits on panels 0.029 - 0.045 in (0.7 - 1.1 mm) wide, has a width of 0.212 in (5.4 mm)m and is colored black.
- Stainless steel substrate
- Flammability rating: UL94 V-0
- RoHS Compliant
- DFARS Compliant
- Multi axis flexibility
- Indoor or outdoor use
- High gripping strength
- High corrosion resistance
- High dielectric strength
- High shock and vibration resistance per rms G 41.7
- Multi-axis flexibility for rounded inside and outside corners
- Continuous edge protections on flanged holes, 1/8 inch or greater inside radius and 1/4 inch or greater outside radius
Product Codes | |
|---|---|
| Mfr Part No: | SL1-0025-ER0201 |
Size: 0.029 - 0.045 in (0.7 - 1.1 mm)Width: 0.212 in (5.4 mm)Axis Conformity: MultiSubstrate: Stainless Steel, ASTM A 666-03Finish: TPE EncapsulationVicat Softening Point: ISO306 230ºF (110ºC), ASTM D01525 Rate BOperating Temperature: -67°F to 203°F (-55°C to 95°C), MIL-STD-202G, Method 107G, Table 107-1Low Temperature Soak: -40°F (-40°C), MIL-STD-810E, Method 502.3Temperature Cycling: -67°F to 203°F (-55°C to 95°C), MIL-STD-202G, Method 107G, Table 107-1Humidity: No physical change, MIL-STD-810F, Method 502.3 Procedure 1Dielectric Withstanding Voltage: 2,000 V @ 60 Hz, NASM22529 Paragraph 4.2.9Abrasion Resistance: 25 mg Loss ASTM D1044, 1Kg Load, C17 Wheel @ 1000 cycles No change in weight or dielectric strength, DTi Abrasion Resistance Test 250,000 cylces @ 60 cylces/minSalt Spray Hours: 500 MIL-STD-202F, Method 101DImmersion: No physical change, NASM22529, MIL-H-5606, MIL-T-5624,Mechanical Shock: No movement or physical change MIL-STD-810C Method 516.2 Test Procedure IV Drop Test @ 100 g force per 3 perpendicular axesRandom Vibration: No movement or physical change MIL-STD-202 Method 214A Table 1, Duration: 8 hours in 3 perpendicular axes over GRMS 39Flammability: No sustained flame front or drips, ASTM E 162 Tested, FAR 25.853 (A), and UL94 V-0Smoke Density: Test period 90 sec., 4 min., 20 min. with no flaming, dripping, or running, ASTM E 662 Tested, FAR 25.853 (D)Flammability Certifications: FAR 25.853 (A) UL94 V-0 (File No. E113553 NZMT2)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: SL1-0025-ER0201
