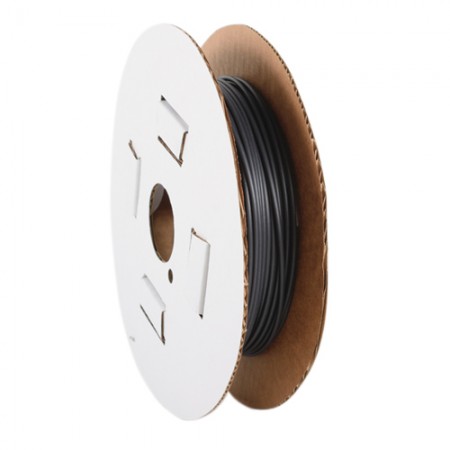

HEAT SHRINK/Black, 1/16 diameter, 100' roll HIX-1/16 BLACK SPOOLED pack of 100
HEAT SHRINK/Black, 1/16 diameter, 100' roll HIX-1/16 BLACK SPOOLED pack of 100ProFIT® HIX Heat Shrink Tubing | Black, 1/16 in, 100 ft
ProFIT® HIX general purpose polyolefin heat-shrinkable tubing is used for insulating, jacketing, bundling, and identifying wire and cables. HIX tubing is mechanically tough and resistant to abrasion and solvents while providing a longitudinal shrinkage less than 6%.
This HIX heat shrink tubing (Alternate Part# HIXR-1/16):
- 1/16 inch diameter
- Colored black
- 100 foot roll
Features:
- Application specifications: SAE-AMS-DTL-23053/5, Class 1 and 2
- UL File Number: E52612 (VW-1 except Clear)
- Operating Temperature: -67°F to 275°F (-55°C to 135°C)
- Shrink Ratio: 2 to 1
- Shrink Temperature: 250°F (121°C)

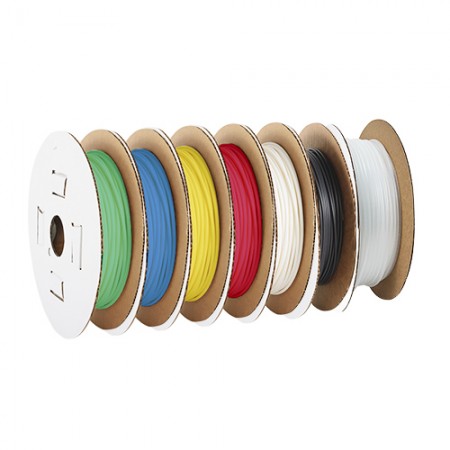

- Color: black (other colors available)
Product Codes | |
|---|---|
| Mfr Part No: | HIX-1/16 BLACK SPOOLED |
| MIL SPEC: | M23053/5 |
| ECCN: | EAR99 |
| MIL SPEC: | M23053/5 |
| SCHEDULE B CODE: | 3902.30.0000 |
Diameter: 1/16 inLength: 100 ft rollMinimum Expanded I.D.: 0.063 in (1.60 mm)Maximum Recovered I.D.: 0.031 in (0.79 mm)Recovered Wall Thickness: 0.017 in (0.43 mm)
- Stock: Warehouse
- Manufacturer Part #: HIX-1/16 BLACK SPOOLED
$59.99
