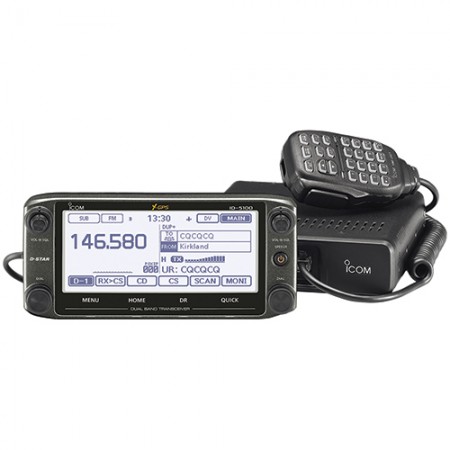

The ID-5100A VHF/UHF dual band D-STAR transceiver offers an intuitive user interface with an industry-leading display. The ID-5100 additionally interface with Android™ devices and Bluetooth® headsets via optional Bluetooth module. With the UT-133 Bluetooth module installed, users are able to connect wirelessly using the RS-MS1A Android app and remotely set DR functions such as link a map application and send and receive message over the DV mode. The intuitive touch screen interface provides quick operation for setting and editing various functions and memories. The 5.5-inch display displays a large keypad allowing for quick entry of alpha-numeric characters.
- DV/DV Dual watch mode has simultaneous receive for FM/FM and FM/DV modes and monitoring for two DV signals with priority on the main audio band
- Integrated GPS allows users to transmit and receive position data; Position, course, speed and altitude are shown on the display
- Bluetooth available with the UT-133 Bluetooth accessory for remote operation via the RS-MS1A Android app
- DV/FM repeater list function assist in finding nearby repeaters
- Dplus reflector linking commands have been added to DR function for easy reflector operation
- SD card slot provides voice and data storage
- DV fast data mode allows users to use data in place of voice frames to transfer data 3.5 times faster than in the conventional DV mode
Product Codes | |
|---|---|
| Mfr Part No: | ID5100A DELUXE |
Weight: 2.87 lb (main unit) / 9.17 oz (controller)Dimensions: 5.91 x 1.57 x 6.8 in (main unit) 7.17 x 3.21 x 0.97 in (controller)Frequency coverage: Tx: 144 MHz to 148 MHz / 430 MHz to 450 MHz Rx: 118 MHz to 174 MHz / 375 MHz to 550 MHz Mode: FM, FM-N, DV, AM (receive only) depending on versionMemory channels: 1,000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memoriesDigital transmission speed: 4.8 kbpsVoice coding speed: 2.4 kbpsPower supply requirements: 13.8 VDC ± 15%Current drain: Tx: 13 A (max power) Rx: 1.2 A (stand-by) / 1.8 A (max audio)Operating temperate: 14°C to 140°COutput power (Tx): 50 watt, 15 watt, 5 watt selectable (high/Mid/Low)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: ID5100A DELUXE
