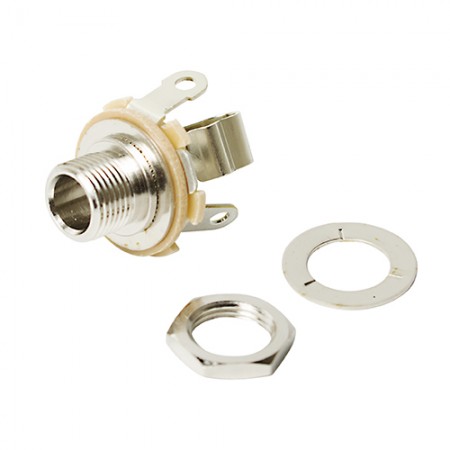

JJ034 HEADPHONE JACK/MONO/ 1/4 inside diameter, includes metal washer and nut. 11
JJ034 HEADPHONE JACK/MONO/ 1/4 inside diameter, includes metal washer and nut. 111/4-inch Open Frame Jack | 2-Conductor, Open Circuit, Mono
Switchcraft 2-conductor, 1/4-inch open frame jacks mate with standard commercial phone plugs and available with 1/4-inch inside diameter bushings.
This variant (Alternate Part# SWC 11) has 2-conductor mono jack connectors, an open circuit design, and includes a nut and washer.
- Nickel-plated, copper alloy bushing
- Nickel silver tip spring
- Electro-tinned, copper alloy sleeve terminal
- Phenolic insulating washers
- Nickel-plated steel jack washer
- Nickel-plated copper alloy hex nut
- Nickel-plated steel mounting washer
Product Codes | |
|---|---|
| Mfr Part No: | 11 |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8536690000 |
Plug Diameter: .210 – .250 inInsertion Force: 7 lbWithdrawal Force: 1 lbContact Resistance: 0.030Ω, maximumInsolation Resistance: 10,000 MΩDielectric withstanding Voltage: 500V, 60 Hz (rms) ACContact Rating: 1A, 25 VDC
- Stock: Warehouse
- Manufacturer Part #: 11
$5.99
