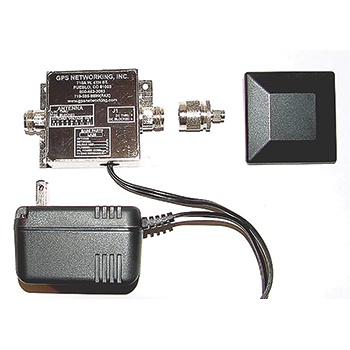

This portable networked re-radiating kit is designed to re-distribute GPS signals where an L1 antenna is already in use. Portable re-radiating kits consists of a re-radiating antenna, an amplifier with external power supply for powering the entire system. In the standard networked configuration, the re-radiating amplififer output J1 is DC blocked while the antenna port receives RF signal and passes DC voltage back to power an active antenna. Custom gain, DC power, and connector configurations are available.
This portable GPS re-radiating kit (Alternate Part# PNRRKIT110) features N-type connectors, a 110-volt source voltage, and 5V output voltage.
- Re-radiating amplifier with external power supply: 30 dB typical gain
- Option mounting kit hardware
- Optional variable gain amplifier: adjustable from 1 dB — 25 dB
- Optional variable gain amplifier with LCD: adjustable from 1 dB — 30 dB
Product Codes | |
|---|---|
| Mfr Part No: | PNRRKIT-N/5/110 |
| ECCN: | 7B994 |
| SCHEDULE B CODE: | 8526910070 |
Re-Radiating Antenna:Weight: 1.7 oz (48 g)Dimensions: 0.67 x 2.6 x 2.6 inOperating Temperature: -40°C to 85°CFrequency: 1.572 GHz — 1.578 GHzAxial Ratio: 3 dB, max.Peak Gain: 4 dBicBandwidth: 20 MHz, min.Input SWR: 1.5:1, max.Characteristic Impedance: 50ΩRe-Radiating AmplifierWeight: 9.9 oz (281 g)Dimensions: 1.25 x 3.25 x 2.5 in, max. (not including connectors)Operating Temperature: -57°C to 87°CFrequency Range: 1.1 GHz — 1.7 GHzCharacteristic Impedance: 50ΩReq. DC Input V.: 3.3 VDC — 15 VDCCurrent Draw: 36 mA, typical (40 mA, max.)Gain: 29 dB — 31 dB (30 dB, typical)Input SWR: 2.0:1Output SWR: 2.0:1, max. (1.8:1, typical)Noise Figure: L1: 2.0 dB L2: 4.25 dBBand Gain Flatness: 0.5 dB, typical (1 dB, max.)Group Delay: L1: 1.5 ns L2: 2.0 nsReverse Isolation: L1: -55 dB L2: -60 dBInput P1dB: L1: -21.5 dBm L2: -23 dBm3rd Order Intercept: -13 dBmSource Voltage Option: 110VAC Transformer (ITA Type A Wall Mount)Output Voltage Option: 5V @ 130 mAConnector Option: N type
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: PNRRKIT-N/5/110
