The MIL-T-81714 series II, class D socket junction modules accommodates 12–26 AWG wire and provide a broad range of customized bussing arrangements. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39019/22 socket and pin contacts.

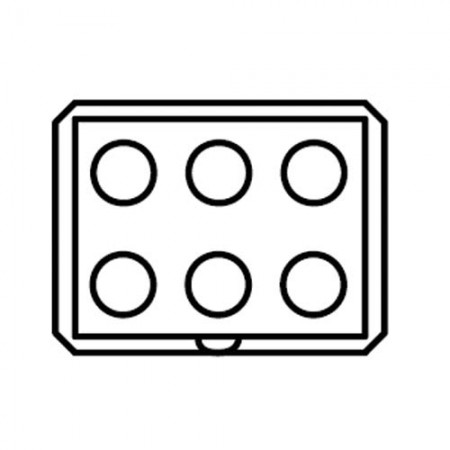

This series II socket junction module (Alternate Part# M817146016) features 6 contact positions each of size 16.
- Assures superior performance in wire sealing, contact alignment and retention, and module extraction
- Lightweight junction system
- Feedback modules provide a full range of bussing solutions
- Distribution modules provide a variety of contact combinations
- Ground modules are available in both center stud and flange mounting options
- Board mount pin modules can be soldered directly to printed circuit boards without requiring a mounting track
Product Codes | |
|---|---|
| Mfr Part No: | M81714/60-16-01 |
| MIL SPEC: | M81714/60-16-01 |
| MIL SPEC: | M81714/60-16-01 |
Temperature Range: -65°C to 200°CInsulation Resistance: 5,000 MΩ @ 25°CDielectric Withstanding Voltage: 1,500 VRMS @ sea level 200 VRMS @ 110,000 ftCurrent Rating: 13AVibration & Shock: MIL-T-81714 paragraph 3.5.5 & 3.5.8Body Material: Polyetherimide per ASTM-D5205Grommet: silicone blend elastomer per A-A-59588Contact Retainers: stainless steelInternal Pin & Socket Contacts: copper alloy, hard gold-plated (accordance with MIL-G-45204)
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: M81714/60-16-01
