The MIL-T-81714 series II, class D distribution socket junction modules provide a variety of contact combination for power distribution applications and have the same construction and features as standard Series II modules. These modules are robust, reliable and performs to M81714 electrical and mechanical standards. The various types of feedback and feedthrough, electronic, in-line splice, and ground terminals provide installers options for customizing their rail and termination installation. The series II commercial socket junction modules use M39029/22 socket and pin contacts.

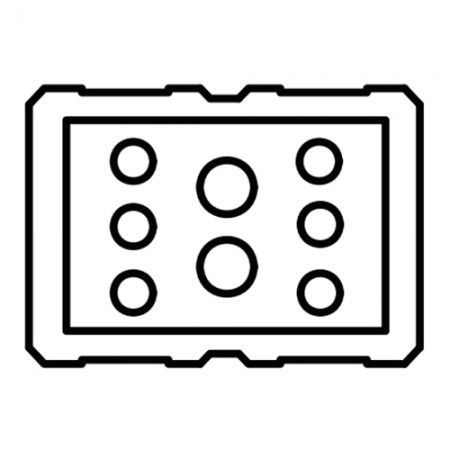

This distributed socket junction module (Alternate Part# M81714610Y) features a one bus configuration with two size 16 & six size 20 contacts.
- Assures superior performance in wire sealing, contact alignment and retention, and module extraction
- Lightweight junction system
- Feedback modules provide a full range of bussing solutions
- Distribution modules provide a variety of contact combinations
- Ground modules are available in both center stud and flange mounting options
- Board mount pin modules can be soldered directly to printed circuit boards without requiring a mounting track
Product Codes | |
|---|---|
| Mfr Part No: | M81714/61-0Y |
| MIL SPEC: | M81714/61-0Y |
| MIL SPEC: | M81714/61-0Y |
Contacts: 6 size 20 (M39029/22-192)2 size 16 (M39029/22-193)Temperature: -65°C to 200°CInsulation Resistance: 5,000 MΩDielectric Withstanding Voltage: 1,500 VRMS @ Sea Level 200 VRMS @ 110,000 ftCurrent Rating: 7.5A (size 20) 13A (size 16)Vibration & Shock: MIL-T-01714 Paragraph 3.5.5 & 3.5.8Body Material: polyetherimide per ASTM-D5205Grommet Material: silicon blend elastomer per A-A-59588Contact Retainer Material: stainless steelInternal Pin & Socket Material: hard gold-plated, copper alloy in accordance with MIL-G-45204
