Edmo

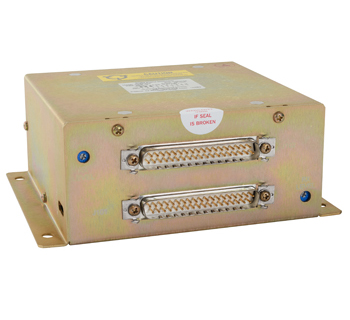

AA38-502 Local Ics Loop | 8 Place, Lo Z

P/N AA38-502

Condition disclosed

Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.

Stocked & sold by AAP

$4,436.78

On backorder

UOM EA · MOQ 1

Paperwork shown up front · 30-day returns · secure checkout

Request certification documents (8130-3 / EASA Form 1 / C of C)

Description

Special Order, non-cancellable, non-returnable

The AA38 Series Aircraft Intercom System Local ICS Loop provides intercom functions with operation in Live, VOX, or PTT modes. The units are bulkhead mounted containing all the circuitry required to support a wide variety of ICS Loop applications, particularly isolation/ICS amplifier use, where the output is required to be headset or line level. A switch-selectable NAT/Andrea allows connections to larger audio systems, and an auxiliary input allows for audio input from an audio panel or transceiver.

Version AA38-502 has functions for 8 users with low impedance headsets.

LO Z local ICS loop – eight place intercom
8 MIC inputs – 0.250 mV / 5Ω
2 ICS tie lines – 1.6 kΩ (NAT) or 250Ω (Andrea)
2 AUX inputs – 1kΩ
8 headset outputs 100 mW @ 8 or 600Ω
Balanced output for high common mode noise rejection
LIVE, VOX or PTT operation

Weight:
2.00 lb

Dimensions:
5.91 x 4.88 x 2.26 in.

Mounting:
Bulkhead mount with four 10-32 screws

Material/finish:
5052-H32 brushed aluminum with conversion coating finish

Connectors:
Filtered male 37-pin D-subminiature connector with V5 locking tabs

Temperature:
-55ºC to 85ºC

Altitude:
35,000 ft

Input voltage:
24.8 to 30.3 VDC

PRODUCT CODES
Mfr Part No:	AA38-502
ECCN:	7A994
SCHEDULE B CODE:	8518.40.2000

Product Codes
Mfr Part No:	AA38-502
ECCN:	7A994
SCHEDULE B CODE:	8518.40.2000

Weight: 2.00 lb Dimensions: 5.91 x 4.88 x 2.26 in. Mounting: Bulkhead mount with four 10-32 screws Material/finish: 5052-H32 brushed aluminum with conversion coating finish Connectors: Filtered male 37-pin D-subminiature connector with V5 locking tabs Temperature: -55ÂºC to 85ÂºC Altitude: 35,000 ft Input voltage: 24.8 to 30.3 VDC

Specifications

Part number	AA38-502
Manufacturer	Edmo
Condition	—
Airworthiness	Condition disclosed
Country of origin	—
Lead time	days

Frequently asked

Does the AA38-502 Local Ics Loop | 8 Place, Lo Z include certification paperwork?

This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.

What condition is this part?

This part is listed in condition as listed — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.

How fast does it ship?

This item is currently on backorder, meaning demand has temporarily outpaced our stock and a new shipment is inbound from the manufacturer or our supplier. Request a quote and we will confirm the current estimated delivery window before you commit. If your aircraft is grounded, AOG expedited handling is available on request.

Can I return it?

You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
