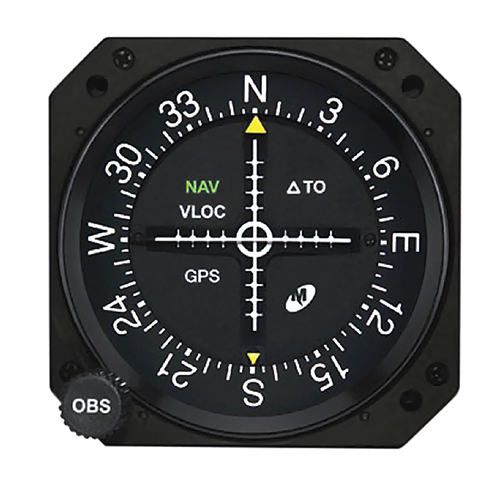

Course Deviation Indicator/14-28V, 3, lighted, glidescope. MD200-706
Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.
Request certification documents (8130-3 / EASA Form 1 / C of C)
Description
The MD200-706 Course Deviation Indicator is designed to work with VHF and GPS navigational equipment to provide OMNI (VOR), GPS, localizer (LOC), and glideslope information. The MD200 is designed to accept DC signals from Left-Right and Up/Down pointer deviation and Valid/Invalid (flag) status from a remote mounted VOR converter. It also provides annunciations for NAV, VLOC, and GPS indication of the incoming source or mode and a TO or FR (from) annunciation to indicate direction of the ground signal or course waypoint from the aircraft.
- Fits standard 3-1/8 inch panel cutout
- All metal construction with stainless steel ball bearings in critical areas
- Deviation bars/pointers hide from view when invalid
- LED annunciations for NAV, GPS, VLOC and To/From indication
- True OBS course resolver output
- Compatible with WAAS GPS receivers
- Pin-for-pin replacement for all legacy MD200 models
- Optional course datum synchro output (MD200-707)
- High-quality D-Sub connectors included with gold-plated pins
- FAA TSO and ETSO certified for use with all GPS and VOR systems
Product Codes | |
|---|---|
| Mfr Part No: | MD200-706 |
| ECCN: | 7A994 |
| ETSO: | C34e, C36e, 2C40c |
| PROAPP: | PT3738CE, PQ3738CE, OL2R061L |
| SCHEDULE B CODE: | 9014.20.6000 |
| TSO: | C34e, C36e, C40c |
Weight: 1.3 lbs Voltage Input: 12 – 32 VDC Current Input: 0.2 amps max Lighting: 5V, 14V, or 28V automatic photocell dimming of annunciators Cutout: Standard 3 1/8†round Temperature: –55°C to +70°C (–67°F to +158°F) Altitude: 0 to 55,000 ft Humidity: 95% non-condensing Vibration: DO-160B, Cat. M and N Certification: FAA TSO certified to C34e, C36e, C40c EASA ETSO certified to C34e, C36e, 2C40c RTCA DO-1606 qualified Mounting: Panel, rear mount Connector(s): 25-pin male D-Subminiature 9-pin male D-Subminiature Mating Connector(s): 25-pin female D-Subminiature (included)
Specifications
| Part number | MD200-706 |
|---|---|
| Manufacturer | Ati |
| Condition | — |
| Airworthiness | Condition disclosed |
| Country of origin | — |
| Lead time | days |
Frequently asked
Does the Course Deviation Indicator/14-28V, 3, lighted, glidescope. MD200-706 include certification paperwork?
This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.
What condition is this part?
This part is listed in condition as listed — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.
How fast does it ship?
This item is in stock and ships promptly, usually the same or next business day once your order and payment are confirmed. Exact transit time depends on your shipping method and destination and is shown at checkout. If your aircraft is grounded, AOG expedited handling is available on request — no phone tree required.
Can I return it?
You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
