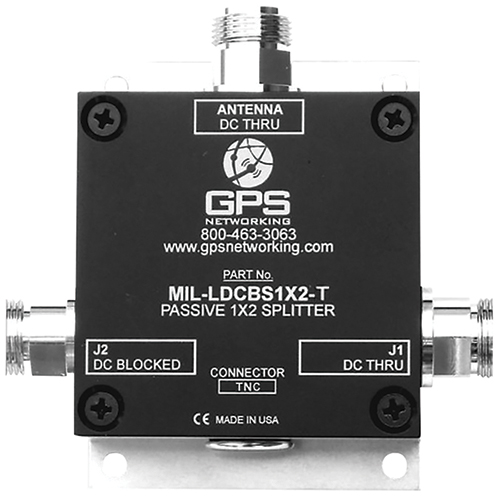

GPS Splitter/With Tnc connector. Passive, one input, two output. Mil Spec. MIL-LDCBS1X2-TNC
Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.
Request certification documents (8130-3 / EASA Form 1 / C of C)
Description
The MIL-LDCBS1X2 military GPS splitter features a one input and two output for splitting RF frequencies from 1.1 GHz — 1.7 GHz. This mil-spec splitter is designed to passively GPS signals within the L-Band to provided multiple devices with GPS signal from a single antenna. In the standard configuration, the J1 port passes DC voltage from a connected device to the antenna or another device up from the splitter. The other port J2 is DC blocked and loaded with a 200Ω resistor to simulate antenna current draw which prevent alarm faults. All Mil-Spec splitters are qualified to meet the rigorous standards MIL-STD 810F environmental & MIL-STD-461F EMI standards.
This mil-spec GPS splitter (Alternate Part# MILLDCBS-T) features one input & two outputs, and has TNC-type connectors.
- Precise amplitude balance: < 1 dB variation between ports
- Flat group delay: < 1 ns between L1 & L2 bands
- Low insertion loss: -4.0 dB loss across operating frequencies
- Wide accepted frequency range: covering entire L-band & major GNSS constellations
- Efficiently blocked ports: 200Ω resistor prevents antenna alarm faults
- Matched phase balance: < 2° variation between ports
- Qualification and test reports available
Product Codes | |
|---|---|
| Mfr Part No: | MIL-LDCBS1X2-TNC |
| ECCN: | 7b994 |
| SCHEDULE B CODE: | 9014.80.6000 |
Weight: 10.2 lb, max. Dimensions: 1.3 x 3.25 x 2.5 in (without connectors) Operating Temperature: -57°C to 87°C Housing base plate Finish: electroless nickel-plated (MIL-C-26074C, class 1) Frequency Range: 1.1 GHz — 1.7 GHz Characteristic Impedance: 50Ω Input SWR: 2.0:1, max. Output SWR: 2.0:1, max. Insertion Loss: -3.0 dB to -5.0 dB (-4.0 dB, typical) Gain Flatness: 0.25 dB, typical (1.0 dB, max.) Amplitude Balance: 0.10 dB, typical (1.0 dB, max.) Phase Balance: 1.0°, typical (2.0°, max.) Isolation: L1: 22 dB L2: 15 dB Group Delay Flatness: 0.10 ns, typical (1.0 ns, max.) Connector Option: TNC-type female
