GPS Networking

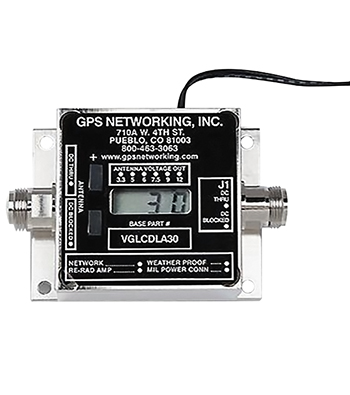

GPS Variable Gain Line Amplifier/Lcd Display & Pushbutton Controls VGLCDLA30RPDC

P/N VGLCDLA30RPDC

Condition disclosed

Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.

Stocked & sold by AAP

$873.00

On backorder

UOM EA · MOQ 1

Paperwork shown up front · 30-day returns · secure checkout

Request certification documents (8130-3 / EASA Form 1 / C of C)

Description

GPS VARIABLE GAIN LINE AMPLIFIER/LCD DISPLAY & PUSHBUTTON CONTROLS VGLCDLA30RPDCVariable Gain GPS Line Amplifier | 30 dB Gain with LCD

This variable gain GPS line amplifier features up to 30 dB of gain and an easy-to-use LCD display. This line amplifier is a one input and one output device that is optimized for GPS applications. The amount of gain can be changed using the control buttons, and the amount of gain is displayed on the LCD display. In the standard configuration, port J1 accepts DC voltage from a connected GPS receiver. This voltage is passed through to power an active antenna or other upstream device. In a networked (externally power) configuration, the output port (J1) is DC blocked, and a customer-defined output voltage is provided via the antenna port.

This variable gain GPS line amplifier (Alternate Part# VGLCDLA30R) has an LCD display and push button controls.

Customizable variable gain amplifier: gain from 0 dB to 30 dB
Easy-to-use buttons and LCD display
Wide accepted frequency range: covers entire L-band & major GNSS constellations

Product Codes
Mfr Part No:	VGLCDLA30RPDC

Weight: 9.7 oz (275 kg) max. Dimensions: 1.27 x 3.25 x 2.5 in Operating Temperature: -57°C to 87°C Frequency Range: 1.1 GHz â€” 1.7 GHz Characteristic Impedance: 50Ω Reverse Isolation: -60 dB Req. DC Input V.: 3.3 VDC â€” 15 VDC Current Draw: 42 mA, typical Minimum Gain: -1 dB to 1 dB Maximum Gain: 29 dB to 31 dB, 30 dB typical Input SWR: 2.0:1 Output SWR: 2.0:1 SWR Noise Figure Minimum Gain: L1: 4.4 dB L2: 6.25 dB Noise Figure Maximum Gain: L1: 1.9 dB L2: 4.66 dB Band Gain Flatness: 0.5 dB, typical (1.0 dB, max.) Input P1dB: -22.9 dBm 3rd Order Intercept: -14 dBm

Specifications

Part number	VGLCDLA30RPDC
Manufacturer	GPS Networking
Condition	—
Airworthiness	Condition disclosed
Country of origin	—
Lead time	days

Frequently asked

Does the GPS Variable Gain Line Amplifier/Lcd Display & Pushbutton Controls VGLCDLA30RPDC include certification paperwork?

This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.

What condition is this part?

This part is listed in condition as listed — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.

How fast does it ship?

This item is currently on backorder, meaning demand has temporarily outpaced our stock and a new shipment is inbound from the manufacturer or our supplier. Request a quote and we will confirm the current estimated delivery window before you commit. If your aircraft is grounded, AOG expedited handling is available on request.

Can I return it?

You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
