ICOM

Hf Transceiver F8101 33

P/N F8101 33

NE — New Condition disclosed

Condition NE — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.

Stocked & sold by AAP

What does “New” condition mean?

$4,829.99

On backorder

UOM EA · MOQ 1

Paperwork shown up front · 30-day returns · secure checkout

Request certification documents (8130-3 / EASA Form 1 / C of C)

Description

HF TRANSCEIVER F8101 33HF TRANSCEIVER

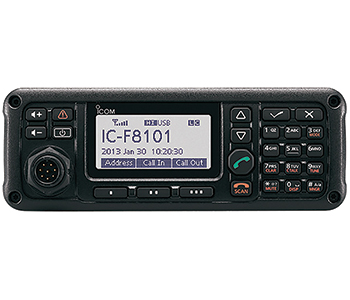

The IC-F8101 HF transceiver provides free voice, fax, email, and data communications with regional or worldwide coverage options. This device is user friendly and does not require advanced radio operator skills. Channels are automatically selected by the Automatic Link Establishment (ALE) system while the Selcall (selective calling) feature provides selective calling, phone call, message call, position call, status call, emergency call, and channel test call options. The IC-F8101 also provides 125W of RF output and has an incorporated test function to check the transceivers condition.
ALE (automatic link establishment) system automatically selects a suitable channel to establish a communication link; capabilities include ALE individual call, net call, sounding, and automatic message display (AMD). Provides interoperability with other 2G ALE manufactures compliant with the FED-STD-1045A ALE standard.

Selcall provides CCIR493 based 4/6 digit open standard Selcalls to allow selective calling, phone calls, message calls, position calls, emergency calls and channel test calls
The IC-F8101 is enclosed in a durable and sealed structure that meets IP54 water resistant standards
Fanless design allows for 125 watts of RF output power at full duty cycle in voice mode for a maximum of five minute transmissions; and the optional CFU-F8100 external cooling fan ensures reliable full duty cycle data and voice mode operations for continuous transmit cycles
The BITE (built-in test equipment) function allows users to check the transceivers condition; users can select from auto, logic, receiver, and transmitter test modes
An administrator/user access feature allows administrators to limit which features users have access to on the IC-F8101, thus making the radio simple and straightforward for users to use; administrators can enter operating frequency, assign memory channels, and assign functions to function buttons
Clear talk function uses the built-in DSP to separate signal from noise to give clearer audio at the touch of a button
The IC-F8101 provides three types of mute functions--call squelch, S-meter squelch, and voice squelch
The IC-F8101 can send current GPS position data to other stations showing position information, time, elevation, and course heading on the display when connected to an external GPS receiver
A third party RapidM TC4 HF data modem module may be installed in the IC-F8101 to make it possible to send and receive HF emails using a PC
Includes a USB port on the back of the unit for connection to a PC or to provide HF email and modulation input
Multiple operating modes (SSB, AM, CW and data modes)
500 kHz to 29.9999 MHz general coverage receiver (TX: 1.6 MHz to 29.9999 MHz) and VFO mode operation
500 Selcall, 500 ALE address memories
0.3ppm frequency stability (-30C to 60C)
TX power protection (PA unit high temperature, high SWR, low battery)
Display mode: SWR, voltage, clock, GPS position, direction and elevation
FCC part 90 compliant (USA version)

Product Codes
Mfr Part No:	F8101 33

Specifications

Part number	F8101 33
Manufacturer	ICOM
Condition	NE
Airworthiness	Condition disclosed
Country of origin	—
Lead time	days

Frequently asked

Does the Hf Transceiver F8101 33 include certification paperwork?

This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.

What condition is this part?

This part is listed in condition NE — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.

How fast does it ship?

This item is currently on backorder, meaning demand has temporarily outpaced our stock and a new shipment is inbound from the manufacturer or our supplier. Request a quote and we will confirm the current estimated delivery window before you commit. If your aircraft is grounded, AOG expedited handling is available on request.

Can I return it?

You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
