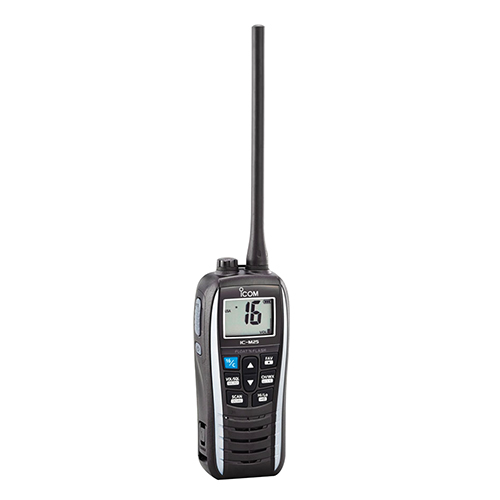

Marine Handheld Radio/White, floating, VHF. M25 01 White
Condition NE — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.
What does “New” condition mean?
Request certification documents (8130-3 / EASA Form 1 / C of C)
Description
The M25 series floating marine VHF radio floats and flashes when dropped into the water.A slim and lightweight design at just 7.8oz. Convenient charging via USB from a variety of electronic devices.
Model M25 01 WHITE handheld has a pearl white accent color.
- Large LCD with large channel number and status icons
- Front panel buttons provide simple and straightforward operation
- AquaQuakeâ„¢ draining function removes water from the speaker
- 4-step battery life indicator
- Weather channel with weather alert
- Dual/Tri-watch functions
- Instant access to Channel 16 or programmable call channel
- Favorite channel function
- Monitor function opens noise squelch
- Auto scan function
- LCD auto backlighting
Product Codes | |
|---|---|
| Mfr Part No: | M25 01 WHITE |
Weight: 7.8 oz Dimensions: 2.2 x 1.2 x 5.3 in. Frequency range: Tx 156.025–157.425 MHz Rx 156.050–163.275 MHz Usable channel groups: INT, USA, CAN, WX channels Type of emission: 16K0G3E (FM) Power supply voltage: 3.7 V DC nominal Current drain: Tx 2.3 A Rx (Internal SP/External SP) 300 mA/200 mA (Max. audio) Operating temperature range: –20°C to +60°C; –4°F to +140°F Antenna impedance: 50 Ω TRANSMITTER Output power: 5 W (approximately)/1 W Max. frequency deviation: ±5.0 kHz Frequency stability: ±10 ppm Spurious emissions: –68 dBc typical Adjacent channel power: 70 dB Residual modulation: 40 dB RECEIVER Sensitivity: 0.25 µV typical (at 12 dB SINAD) Squelch sensitivity: 0.25 µV typical (at threshold) Adjacent channel selectivity: 70 dB typical Spurious response: 70 dB typical Intermodulation: 70 dB typical Audio output power (at 10% distortion): Internal SP 550 mW typical (12 Ω load) External SP 300 mW typical (4 Ω load)
Specifications
| Part number | M25 01 WHITE |
|---|---|
| Manufacturer | ADI |
| Condition | NE |
| Airworthiness | Condition disclosed |
| Country of origin | — |
| Lead time | days |
