Push Back Gateway/Hands free, Dect 6.0 based technology. Accommodates up to 4 wireless belt stations simultaneously connected with audio. 40993G-01
Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.
Request certification documents (8130-3 / EASA Form 1 / C of C)
Description
The Series 9900 Wireless Intercom System is the perfect solution for ground support communications in demanding, high-noise environments such as airline and airport operations, fire and rescue applications, or any application requiring robust, reliable, and secure communications. This system is ideal for push-back operations, wing-walkers, marshaling agents, maintenance mechanics, and de-icing operations. The 9900 system is made up of the Push-Back Gateway, Wireless Belt Stations, and a variety of wireless headsets.

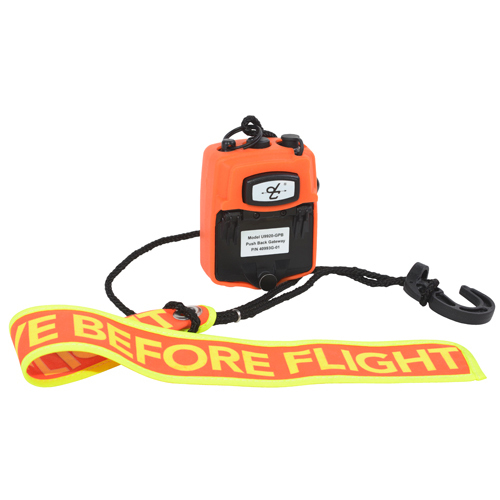

The U9920-GPB Push-Back Gateway aircraft connector is designed to seamlessly integrate all audio between multiple belt stations and the aircraft interphone system for airport push-back applications. A single gateway can accommodate up to four connected wireless users at the same time, providing a hands-free, full-duplex intercom between a single work group and PTT capability for communicating directly with the flight deck.
- Internal antenna provides a 300 foot range from the gateway
- Attaches to aircraft via 360° rotation clip or nylon hook
- Military grade twist-lock connector mates to aircraft interphone cords
- Accommodates up to four wireless users per gateway
- When a belt station user presses the push to talk button to communicate to the flight deck via the gateway, both are heard by all other wireless users on the system
- Other wireless users can be added with alternate belt station options
- Multiple independent gateways can operate in the same RF vicinity without crosstalk
- Listening level control regulates the volume of flight deck intercom transmissions
- Close proximity link via PTT button
- LED indicator for visual status of comm link and PTT status
- Rubberized, high visibility orange outer skin
- Additional gateways can be added to a second aircraft interphone jack to expand the number of wireless users
- Removable, Li-Polymer battery allows for 24 hours of continual usage
Product Codes | |
|---|---|
| Mfr Part No: | 40993G-01 |
Hazmat charges may apply
Weight: 10 oz (280 g) Dimensions: 4 x 2.75 x 2.5 in Frequency: 1920 MHz - 1930 MHz Average Power Output: 4 mW (100 mW peak) Range: 300 ft (100 m) line of sight, typical Carriers: 5 each (1,728 kHz spacing) Time Slots: 2 x 12 (up and down stream) Operating Temperature: -10°C to 45°C Storage Temperature: -20°C to 60°C Power Source: Li-Polymer rechargeable 3.7V cell, 2,000 mAh Power Consumption/Current Draw: 100 mA, typical Aircraft Interface Cords (required for flight-deck communications: 41035G-02 (PJ-051 type plug) 41035G-03 (U-174/U, civilian) 41035G-04 (dual GA plugs) 410035-05 (U-174/U, military)
Specifications
| Part number | 40993G-01 |
|---|---|
| Manufacturer | ACK Technologies |
| Condition | — |
| Airworthiness | Condition disclosed |
| Country of origin | — |
| Lead time | days |
Frequently asked
Does the Push Back Gateway/Hands free, Dect 6.0 based technology. Accommodates up to 4 wireless belt stations simultaneously connected with audio. 40993G-01 include certification paperwork?
This item is supplied as "Condition disclosed" rather than with full 8130-3 traceability — normal for some condition codes, and it does not mean the part is unusable, only that the paperwork profile differs. Check the listing for exactly what documentation is included, and request any available records before you purchase if your installation requires them.
What condition is this part?
This part is listed in condition as listed — Condition disclosed. Condition codes describe how a part reached its current state (for example new, overhauled, serviceable, repaired, or as-removed) and directly affect what paperwork ships with it and how it should be installed. See the Glossary for the full definition of every condition code we use.
How fast does it ship?
This item is currently on backorder, meaning demand has temporarily outpaced our stock and a new shipment is inbound from the manufacturer or our supplier. Request a quote and we will confirm the current estimated delivery window before you commit. If your aircraft is grounded, AOG expedited handling is available on request.
Can I return it?
You may return this item within 30 days of delivery if it is unopened, uninstalled, and in its original packaging. Items that have been installed, powered on, opened hazmat, or separated from an attached 8130-3 tag are non-returnable because their airworthiness status can no longer be confirmed once removed from the part. See our Returns policy for the full process.
