Ws Technologies

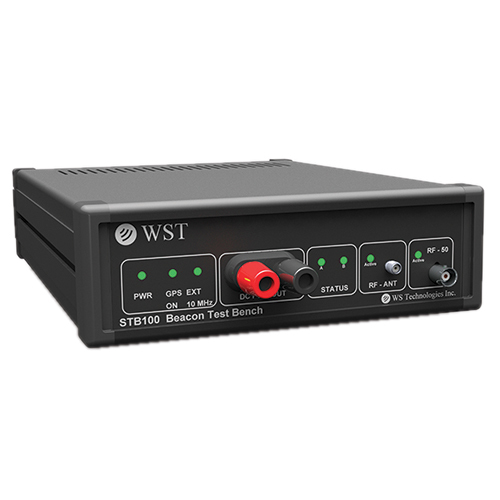

STB100 Test Bench Beacon Tester STB100

P/N STB100

Condition disclosed

Condition as listed — Condition disclosed — is shown up front on this listing, along with the exact price, current availability, and what certification paperwork ships with the part, so you can confirm fit and airworthiness before you buy. Full specifications and answers to common questions are below.

Stocked & sold by AAP

$12,360.23

On backorder

UOM EA · MOQ 1

Paperwork shown up front · 30-day returns · secure checkout

Request certification documents (8130-3 / EASA Form 1 / C of C)

Description

STB100 TEST BENCH BEACON TESTER STB100STB100 Test Bench Beacon TesterThe STB100 is a bench top beacon test unit that is perfect for maintenance facilities, test facilities, beacon manufacturers, and beacon developers. The STB100 tests 406 MHz, 121.5 MHz, 243 MHz, and performs 406 MHz frequency stability. It has accurate DC current and voltage sensing that allows for the characterization of the DC power supplied to a beacon. It also measures leakage current down to 200 nA and incorporates dual temperature probes to add temperature data to each measurement. The I/O interface has 2 relays, 8 analog I/O lines, 8 ADC input lines to use with user-defined functions. An internal GPS receiver allows for delta distance measurement for location encoded beacons. The STB100 connects to a PC while an optional API set allows advanced users to create their own customized user interface to control the unit.

Receives and decodes all Cospas-Sarsat frequency channels and protocols
Measures all 406 MHz, 121.5 MHz, 243 MHz, parameters
Measures and computes 406 MHz frequency stability
Direct 50 RF input with the need of an attenuator
Alternate Antenna input
Monitors the DC power supply to a beacon from 1 to 30 VDC, 5mA to 8A
Vin to Vout low dropout voltage of 100mV/A
Measures beacon leakage current down to less than 200 nA
Overload protection
Streams measurement data is saved into delimited text files for easy analysis
Creates PDF test report
Connect up to two external temperature probes
User-configurable with API set
Each unit includes a Certificate of Calibration
Free software and firmware online updates
Cospas-Sarsat Second Generation Beacon ready

Product Codes
Mfr Part No:	STB100

Weight: 6 lb (2.73) Dimensions: 8.3 x 11.1 x 2.5 in (210 x 280 x 64 mm)

Specifications

Part number	STB100
Manufacturer	Ws Technologies
Condition	—
Airworthiness	Condition disclosed
Country of origin	—
Lead time	days
