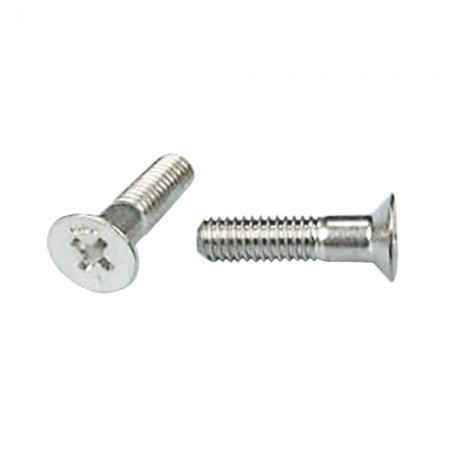

MS24694-C Series countersunk screws feature a 100 degree flat head and are made of a stainless steel material that has been heat treated providing additional hardness.
This Phillips head countersunk screw (Alternate Part# MS24694C13) has a length of 1.031 in and a 8-32 thread size.
- CRES steel material per FED-STD-66 (300 SERIES)
- Heat treated alloy steel with hardness C26 – C32
- Alloy steel finish, CAD PER QQ-P-416 TYPE II, CLASS 3 CRES, passivate PER QQ-P-35
Product Codes | |
|---|---|
| Mfr Part No: | MS24694C13 |
| MIL SPEC: | MS24694C13 |
| MIL SPEC: | MS24694C13 |
Thread Class: 3aThread Direction: right-handThread Length: 0.375 in, minimumFastener Length: 1.031 in, nominalHead Style: flat countersunkHead Diameter: 0.283 — 0.332 inInternal Drive Style: cross recess type 1Nominal Thread Diameter: 0.164 inThread Quantity Per Inch: 32Minimum Tensile Strength: 85000 lb/sq. inCountersink Angle: 99° — 101.0°Screw Material: steel corrosion resistingScrew Material Document And Classification: 66 Fed Std Single Material ResponseScrew Surface Treatment: passivateThread Series Designator: UNC
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: MS24694C13
