CO DETECTOR/Bluetooth, GPS Loc, Panel Mount 424-201-101AERO 454 CO Detector | Panel MountThe AERO 454-201 (454-201101) panel mounted carbon monoxide (CO) detector with built-in Bluetooth® capabilities. This CO detector receives data from the airplane's panel mounted GPS, and wirelessly transmits GPS location to an iPad or iPhone. This unit is designed to detect, measure, and provide alerts to the crew of reciprocating engine type aircraft before the cockpit level of carbon monoxide (CO) reaches a critical level. The built-in pressure sensor indicates altitude warnings at 10,000 feet, 12,500 feet, and 14,000 feet as a reminder to the pilot that supplemental oxygen should be used. These warnings are displayed on an optional annunciator lightThis AERO 454-201 unit has passed all mandatory functional and quality checks as prescribed by the FAA and has been awarded TSO certification.Bluetooth® enabled: GPS data transmitted to tablets supported by Apple iOSBuilt-in Pressure Sensor provides cabin pressure altitude warnings at 10,000, 12,500 and 14,000 feetCO Sensor tested to 25,000 feet and no effect to 40,000 feetTone generator for headsetsRS-232 Serial Connection included for reporting on external systems (see specs for list)Internal fan for optimum CO sensingStreams GPS data from Garmin GPS 430/480/530/650/750, Garmin G3X, Garmin G3X Touch Panel G900 and G1000 and Bendix King KLN89, KLN90B, and KLN94Product CodesMfr Part No:424-201-101Weight:
4 oz
Dimensions:
4.5 x 1.625 x 1.25 in
Circuit Breaker:
2 Amp
Humidity:
5% to 95% RH (noncondensating)
Input Power:
14/28 VDC
Power Usage:
less than 1 Watt
Temperature Range:
-20°C to 55°C
RS-232 output will display carbon monoxide levels or a warning on the following products:
Garmin: GNS480, G3X, G3X Touch, G900, and G1000
JPI: EDM 730, EDM 830, EDM 900 Primary, EDM 900 Experimental, EDM 960 Twin
Electronic Instruments: MVP50P, MVP-50T, CGR-30P
Advanced Flight System: AF2500/3500/4500/5000/5400/5500/5600/5800
Grand Rapids Technologies: Sports Series, Horizon HX, and HXr EFIS Systems
Ultra Electronics: AuRACLE CRM 2120
MGL Avionics: XTreme EFIS..
$0.00

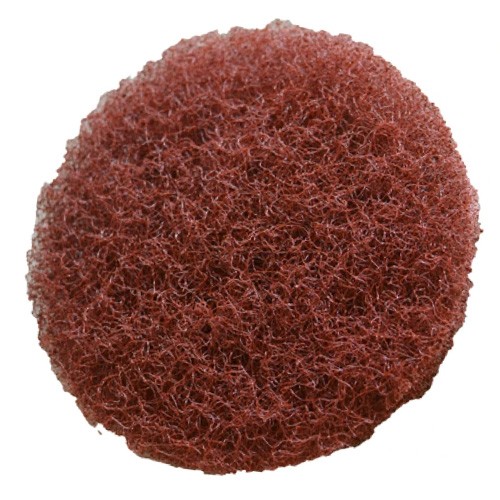

COARSE PAD/For use with Dual Action Polisher. 1ea. 3203Dual Action Polisher Scrubbing Pad | Course, BrownThese scrub pads are designed to attach to the Dual Action Polisher backing plate. They can be used for a variety of cleaning tasks, from buffing wood to removing bottom paint.(Brown) coarse for stripping and paint prepFor Dual Action PolisherNot compatible with Pro or Rotary polishersProduct CodesMfr Part No:3203..
$8.23
COASTERS/Classic, round, set of 4 ea. 9010COASTCockpit Instrument Style Drink Coasters | Round, Set of 4These round coasters are designed to intricately simulate a primary flight instrument. Each coaster feature the dial which closely represents that of the particular flight instrument. Made of clear acrylic and have four rubber feet on the underside to ensure stability and avoid surface damage.Durable acrylic materialProtective rubber feetRealistic designSet of 4Included designs: altimeter, airspeed, horizon and directional gyroProduct CodesMfr Part No:9010COASTECCN:EAR99SCHEDULE B CODE:9403.70.0000Dimensions:
3.875" diameter
Imprint Area:
3.625"
Shape:
Round
Coasters:
Set of 4..
$24.25
COASTERS/Modern instrument, square, set of 4 ea. 9099Drink Coasters | Modern Instruments, Square, Set of 4 These drink coasters are made to represent cockpit flight instrumentation with the replicated dials. The square coasters are constructed with clear acrylic and have four rubber feet on the underside to ensure stability and avoid surface damage.Replica dialAcrylic plastic constructionRubber feet for safety and stabilitySet of 4Product CodesMfr Part No:9099ECCN:EAR99SCHEDULE B CODE:9403.70.0000..
$24.25
COIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE/7 COND'RS/CABLE OD .241/COIL/EMS CONFIG'N W/20 STRAIGHT FROM CASE TO COILS MS3476W10-6P CIKM-24X-3/4C-6WCOIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE/7 COND'RS/CABLE OD .241/COIL/EMS CONFIG'N W/20 STRAIGHT FROM CASE TO COILS MS3476W10-6PCOIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE/7 COND'RS/CABLE OD .241"/COIL/EMS CONFIG'N W/20" STRAIGHT FROM CASE TO COILS MS3476W10-6PProduct CodesMfr Part No:CIKM-24X-3/4C-6WECCN:ear99SCHEDULE B CODE:8544.49.0000..
$140.65
COIL CABLE with overmold and Hirose plugs for CIX100 switch case, 7 conductors (2ea 28AWG TSP's plus 3ea 24AWG ind'ls & overall shield), cable Outer Diameter .241, coil (OD .800, retracted 60 and min 20' extended), MS3116F10-6P six contact plug,MIL-C-26482 series I with strain relief clamp. CIK20-24X-3/4C-6PCCOIL CABLE with overmold and Hirose plugs for CIX100 switch case, 7 conductors (2ea 28AWG TSP's plus 3ea 24AWG ind'ls & overall shield), cable Outer Diameter .241, coil (OD .800, retracted 60 and min 20' extended), MS3116F10-6P six contact plug,MIL-CProduct CodesMfr Part No:CIK20-24X-3/4C-6PC..
$184.30
COIL CABLE/15' with overmold and hirose plugs, for CIX100 switch and case with U-174 type plug. CIK15-24X-4C-7415FT COIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE & U-174 TYPE PLUG15FT COIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE & U-174 TYPE PLUGProduct CodesMfr Part No:CIK15-24X-4C-74ECCN:EAR99SCHEDULE B CODE:8544.49.0000..
$0.00
COIL CABLE/With overmold and hirose plugs for CIX100 seitch case, 7 conductors, cable outside diameter .241, MS3476W12-10P plug with standard wiring. CIK6-24X-3/4C-10WCOIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE/7 CONDUCTORS/CABLE OD .241 COIL/MS3476W12-10P PLUG/STD WIRINGCable assembly with plug3 ft coil cableMS3476W12-10P (10 contact plug)Product CodesMfr Part No:CIK6-24X-3/4C-10WECCN:EAR99SCHEDULE B CODE:8544.49.0000..
$257.05

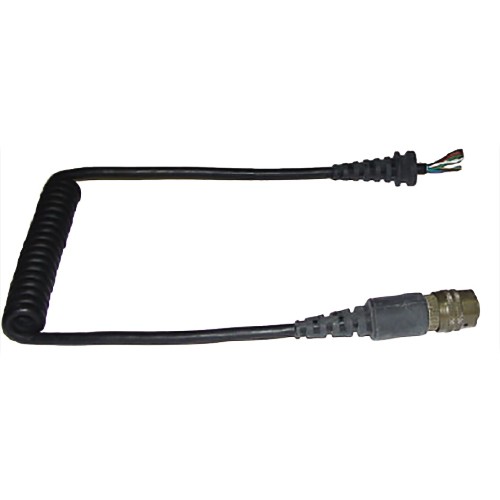

COIL CABLE/With overmold and Hirose plugs for CIX100 switch case, 7 conductor, polyurethane jacket, cable outside diameter .241, coil (OD .800, retr'd 12 & min 3 ft ext'd) w/ MS3476W12-10P plug (option 9B wiring non ANR power and mike lo used as key return). CIK3-24X-3/4C-10W/9B CIX100 Cable | MS3476W12-10P plug, 7-ConductorThis coiled cable, with Hi-rose plugs, (Alternate Part# CIK324X-3) is built for use with the CIX100 switch case. It has a a 7-conductor with a polyurethane jacket and has a 12-inch coiled length extendable to 3-feet. It also includes a MS3476W12-10P plug with wiring option 9B for non-ANR power and the mic-lo is wired as a key return. 7-Conductors12-inch coiled length extendable to 3-feetMS3476W12-10P plug with wiring option 9BProduct CodesMfr Part No:CIK3-24X-3/4C-10W/9B Length:
12 in coiled, 3 ft extended, minimum
Cable Diameter:
0.241 in, O.D.
0.800 in coil, O.D.
Conductors:
7
Jacket:
PolyurethaneÂ
Connector:
MS3476W12-10P plug with 9B wiring option (non-ANR power & mic-lo used as key return..
$174.60
COIL CABLE/With overmold and hirose plugs for CIX100 switch case, 7 conductor, polyurethane jacket, MS3476W12-10P plug, standard wiring. CIK3-24X-3/4C-10WCOIL CABLE W/OVERMOLD & HIROSE PLUGS FOR CIX100 SWITCH CASE/ - CIK324X-Cable Assembly:3 foot coiled cableMS3476W12-10P (10 contact plug)Product CodesMfr Part No:CIK3-24X-3/4C-10WECCN:EAR99SCHEDULE B CODE:8544.49.0000..
$155.20
