0-35k Altitude Encoder, Gray Code and Serial, TSO AIS SAE5-35..

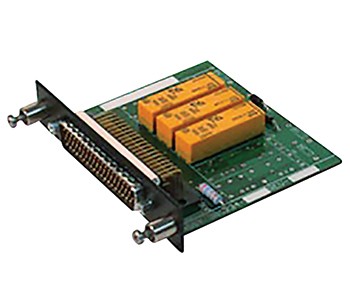

12 POLE SWITCHING MODULE 306110-0012 POLE SWITCHING MODULE The SR 34-1 provides 12 poles of switching through three hermetically sealed, bifurcated relays. The contacts are gold plated and have a two amp load rating at 28 VDC. Coil current is 60 mA. Each relay is independently switched through their appropriate coil pins. Product CodesMfr Part No:306110-00ECCN:7A994SCHEDULE B CODE:8526910070..

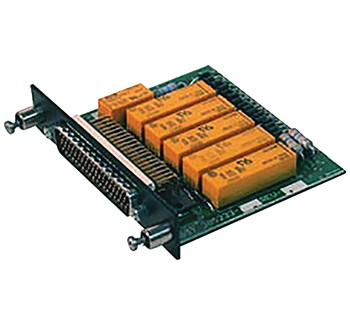

20 POLE RELAY SWITCHING UNIT 306111-00SR 54 Switching Module | 20 PoleThe SR 54 switching relay provides 20 poles of switching through five hermetically sealed, bifurcated relays. The SR 54 has a built-in circuit that switches all relays to their de-energized condition whenever K6 is activated. This can be used for such applications as insuring LOC is presented on the HSI whenever a LOC signal is selected. 20 poles of switchingHermetically sealed bifurcated relayGold plated contact relays2 amp resistive load rating at 28VDC120mA coil currentProduct CodesMfr Part No:306111-00Weight: 0.26 lb Dimensions: 3.92 x 0.82 x 3.5 in. Operating temperature: -20ºC to 55ºC Altitude: 50,000ft Voltage: 28VDC Current required: 120mA..

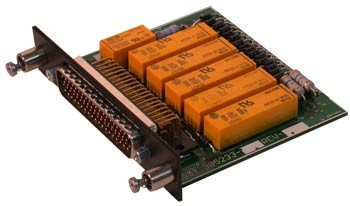

20 POLE SWITCHING MODULE/SR54, 50,000, MARC 70. 305498-00..

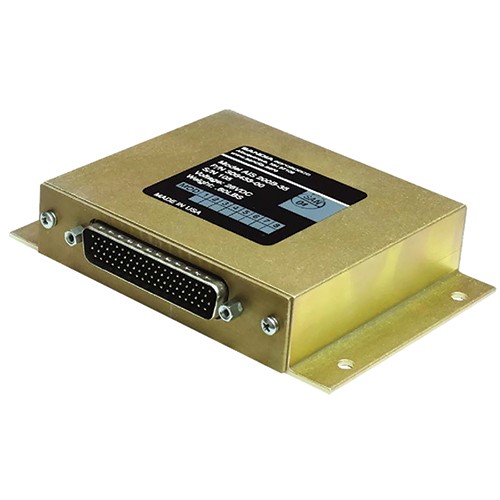

20 POLE SWITCHING UNIT 306433-0020 POLE SWITCHING UNITThe AIS 200B-35 is a 20-pole, signal level, switching unit designed for use with NAV systems that share the aircrafts HSI/CDIs OBS functions. The contact switching rating is limited by the circuit board track current capacity to 1.0 amp. This unit has a revisionary relay which selects the LOC signal for display on the HSI/CDI whenever a LOC channel is selected in the NAV unit. This unit uses 10 relays in a series/parallel arrangement to provide the same 20 poles of switching. While model AIS 200B-35 is a direct fit and replacement for the AIS 200-35 and AIS 200A-35 models, installation of this AIS 200B-35 remains the same. Operates on 28 VDC. Product CodesMfr Part No:306433-00ECCN:7A994SCHEDULE B CODE:9014208040..

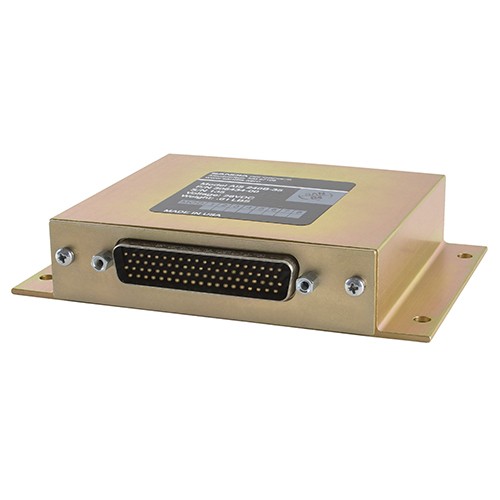

24 POLE SWITCHING UNIT/28V 306434-00AIS 240B-35 Switching Module | 28VDC, For MARC 35The AIS240A-35 is a multi-purpose switching unit, consisting of six, four pole relays for a total of 24 poles of switching capabilities. The relays are arranged in a group of four (16 poles) and two single relays (4 poles each). The relays can be activated by either a ground or 28 Vdc, maximizing installation flexibility. The AIS240A-35 uses gold plated dry contacts that are sealed in nitrogen filled cases.The rugged construction makes them ideal switching units for both fixed wing and helicopter operations.24 total poles of switching capabilitiesSix four-pole relaysActivated by ground or 28VDCGold plated dry contactsNitrogen filled sealed caseProduct CodesMfr Part No:306434-00ECCN:7A994SCHEDULE B CODE:9014.20.8040Weight: 0.50 lb Dimensions: 5.13 x 3.46 x 1.2 in Operation Voltage: 28 VDC Current: 160 mA, will all relays engaged Operation Temperature: -20°C to 55°C, maximum Operating Altitude: 50,000 ft, maximum Contact Rating: 1.0A @ 30 VDC Certification:  FAA-PMA pending..

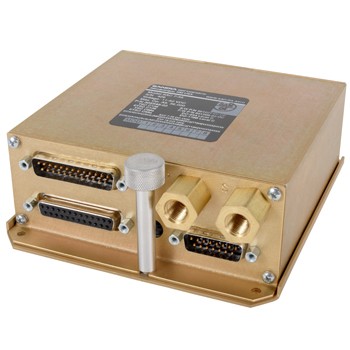

AIR DATA COMPUTER/SAC7-35, includes mounting tray, install kit, OAT probe, install manual. 705548-00SAC 7-35 Air Data ComputerThe SAC7-35 Airdata Computer for General Aviation is actually four systems in one; it provides an altitude encoder, altitude alerting, fuel flow, and air data computer. SAC 7-35 is an FAA TSO approved altitude encoder that provides RS-232 for newer generation transponders as well as standard Gilham Grey code for legacy transponders. The system is also equipped with SANDIA’s altitude inflight monitoring (AIM) that alerts pilots whenever the aircraft deviates 100 feet or more from selected altitude. When paired with a fuel flow transducer, the SAC 7-35 provides all the fuel flow data required for navigation systems to monitor fuel flow.  The SAC 7-35 is also a fully TSO’s airdata computer with multiple interface formats that provide data to a wide variety of avionics systems.This The SAC7-35 Airdata Computer (Alternate Part# 705548-00) includes: tray connectorsOAT probeInstall manualProduct CodesMfr Part No:705548-00ECCN:7a994ETSO:C106, C88ASCHEDULE B CODE:9014.20.8040TSO:C106, C88aWeight: 1.18 lb Dimensions: 5.62 x 4.87 x 1.89 in Electrical: 10 – 32 VDC @ 1 amp, max Inputs: ARINC 407 Synchro Heading OAT Pitot (airspeed) Static (Altitude) Track, Mag, Var & Ground from on-board GPS 5-volt pot baro Fuel flow, pulse GPS position (-01 version only) Air speed: KTS: 40 – 450 MACH: 01 – 0.99 Wind speed:  0 – 200 KTS Vertical speed: ±9,999 ft/min ±20,000 on ARINC bus Air temperature: -60°C to 60°C Accuracy: 1.5°C Altitude: 35,000 ft, max Resolution: 100 ft (Grey Code) 10 ft (RS-232) 10 ft (ARINC 429) Accuracy: ±25 ft (-1,000 to 5,000 ft) ±30 ft (5,001 to 11,000 ft) ±35 ft (11,001 to 20,000 ft) ±50 ft (20,001 to 30,000 ft) ±75 ft (30,001 to 35,000 ft) Fuel flow: Flow rate: 1 – 14,400 GPH per side K-factor range: 500 – 130,000 ADS-B: ARINC 743 labels (-01 version only) Certification: TSO C88a, ETSO C88a TSO C106, ETSO C106 DO160E DO178 level C DO254..

BATTERY/For use with SAI 340 Quatro 306186SAI 340 Quattro Replacement BatteryThis replacement battery (Alternate Part# 306186) directly replaces the backup battery in the SAI 340 Quattro four-in-one standby instrument by Sandia Aerospace.No product features currently available.Product CodesMfr Part No:306186Battery Type: Li-Poly, 7.4V, 1,300 mAh Certification: RTCA DO-347Hazmat fee may apply..

CONNECTOR KIT for ACF328 305084-00Connector Kit | ACF328 Cooling FanConnector kit for the ACF328 Cooling Fan.Compatible with ACF328Product CodesMfr Part No:305084-00ECCN:7A994SCHEDULE B CODE:8803.90.9010..

CONNECTOR KIT FOR PART# ACF528 305068-00. Aircraft electrical connector. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 305068-00 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

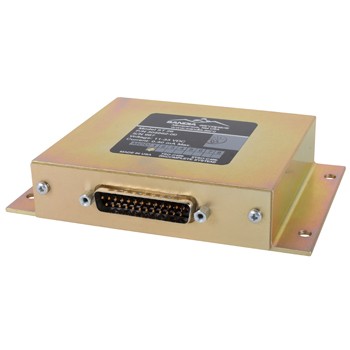

CONVERTER/ST26 Tach Generator Adapter. Converts analog to digital. Includes install kit 305662-00CONVERTER/ST26 Tach Generator Adapter. Converts analog to digital. Includes install kitThe ST 26 is a Tach Generator Adapter that converts the sinusoidal output of a Tach Generator to a digital format that can be used by aircraft display and/or control systems.Approved Tachometers Include: Globe 22A703AAE32005-007Electro-Mech EM-8001Product CodesMfr Part No:305662-00ECCN:7A994SCHEDULE B CODE:9014.20.8040TSO:C49B (INCOMPLETE SYSTEM)..

COOLING FAN/3 PORT/14V ACF314ACF 314 Cooling Fan | 3 Port, 14VThe ACF 314 is able to cool up to three avionics units with up to 20 cubic feet of cool air per minute. It operates on 14 VDC and maintains avionics equipment at proper operating temperature. These cooling fans use high quality, brushless blower motors and use RunQuiet technology. These units are FAA PMA approved and pass stringent environmental testing to ensure years of reliable service.3 portsBrushless blowerRunQuiet technologyProduct CodesMfr Part No:ACF314ECCN:7A994PMA:PQ0894SWSCHEDULE B CODE:8414.59.9080Weight: 1.18 lb Dimensions: 5.18 x 5.18 x 2.1 in Operating Voltage: 14 VDC Current Draw: 960mA (1.7A at start-up) Certification: FAA-PMA..

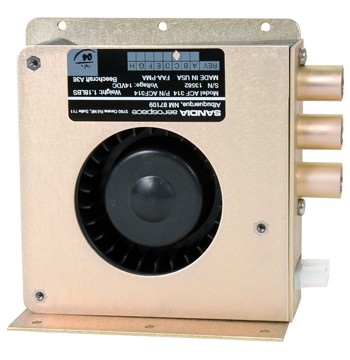

COOLING FAN/3 PORT/28V ACF328ACF 328 Cooling Fan | 28VDC, 3-PortThe ACF 328 is able to cool up to three avionics units with up to 20 cubic feet of cooling air per minute. It operates on 28 VDC and maintains avionics equipment at proper operating temperature. These cooling fans use high quality, brushless blower motors and use RunQuiet technology. These units are FAA PMA approved and pass stringent environmental testing to ensure years of reliable service.Reduces temperature of electronic componentsHelps maintain proper operating temperatureHigh quality brushless blower motorsRunQuiet technology3 cooling ports20 cubic feet of cooling air per minute28VDCProduct CodesMfr Part No:ACF328ECCN:7A994PMA:PQ0894SWSCHEDULE B CODE:8414.59.9080Weight: 1.18 lb Size: 5.18 x 5.18 x 2.1 in Operating Voltage: 28 VDC Current Draw: 480 mA (0.85A at start-up) Certification: FAA-PMA..

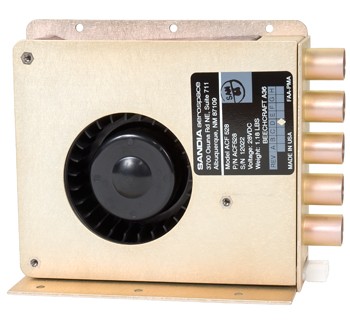

COOLING FAN/5 PORT/28V ACF528ACF 528 Cooling Fan | 28VDC, 5-PortThe ACF 328 is able to cool up to three avionics units with up to 20 cubic feet of cooling air per minute. It operates on 28 VDC and maintains avionics equipment at proper operating temperature. These cooling fans use high quality, brushless blower motors and use RunQuiet technology. These units are FAA PMA approved and pass stringent environmental testing to ensure years of reliable service.Reduces temperature of electronic componentsHelps maintain proper operating temperatureHigh quality brushless blower motorsRunQuiet technology5 cooling ports28VDCProduct CodesMfr Part No:ACF528ECCN:7A994PMA:PQ894SWSCHEDULE B CODE:8414.59.9080Weight: 1.18 lb Size: 5.13 x 6.77 x 2.1 in Operating Voltage: 28 VDC Current Draw: 400 mA (550mA at start-up) Certification: FAA-PMA..

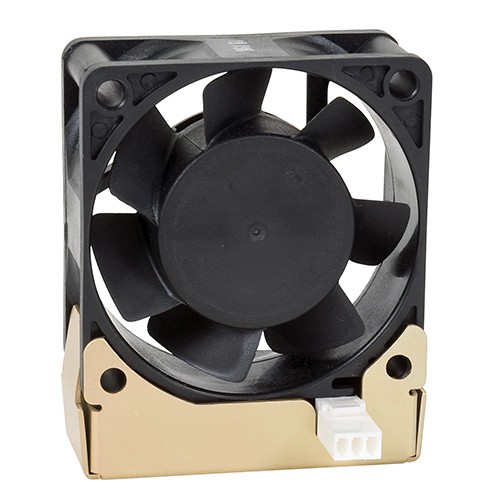

COOLING FAN/SAFE128, axial, 28V, with fault detection. 305468-00SAFE 128 Cooling Fan | Axial, Fault Detection, 28VThe SAFE 128 is an axial fan that is designed to attach directly to an avionics unit’s cooling port. Providing a nominal 20 CFM (no load) of cooling air with an alert output whenever the fan RPM drops below a preset level.Directly attaches to cooling portFault detection outputHigh quality brushless motorConnector kit included22-31 volts DCFAA-PMAProduct CodesMfr Part No:305468-00ECCN:7A994PMA:PQ0894SWSCHEDULE B CODE:8414.59.9080Weight: .25 lb Dimensions: 2.36 x 2.87 x 1.44 in Operating voltage: 22-31 VDC Current draw: 100mA nominal < .250mA Startup Certification: FAA-PMA..

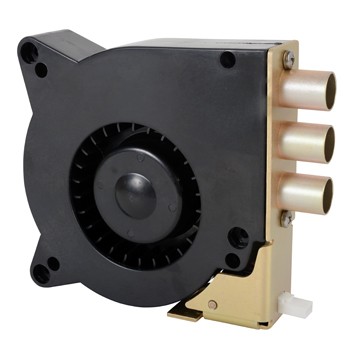

COOLING FAN/SAFE328, 3 port, 28V, with fault detection. 305467-00SAFE 328 Avionic Cooling Fan | 3 Ports, 28 VoltsThe SAFE 328 Avionics Cooling Fan simultaneously cools up to three avionics units. The SAFE 328 is capable of suppling up to 20 CFM of air flow — helping to keep avionics at their proper operating temperature. Fault protection is also provided; when the RPM's drop below a pre-defined threshold, the SAFE 328 sends and alert indicating a fault has occurred. High quality, brushless motors are used providing RunQuiet technology for quiet operation. This FAA PMA unit surpasses the stringent environmental testing ensuring years of reliables service. The SAFE 328 (Alternate Part# 305467-00) includes: The SAFE 328 cooling fanInstallation kitMating connector & pinsFeatures: Cools up to three avionic unitsProvides up to 20 CFMs of air flowFault indication when the fan RPMs drop below 65 percentProduct CodesMfr Part No:305467-00ECCN:7A994PMA:PQ0894SWSCHEDULE B CODE:8414.59.9080Weight: 0.7 lb Dimensions: 1.25 x 5.58 x 4.75 in Voltage: 22 – 31 VDC, operational Current: 0.4 A, nominal 0.55 A, start up Air Flow (All Ports): 20 CFM, no static pressure (10 CFM @ 0.08 H2O Static Pressure) Operating Temperature: -20°C to 55°C Altitude: 55,000 ft, maximum Mounting: Mounts with three #6-32 or #8-32 or equivalent machine screw System Includes: SAFE 328 Fan (305467-00) Installation Kit (305477-00) Mating Connector (305479-03) Mating Pins (305478) Certification: FAA-PMA: PQ0894SW Diamond DA40 DO 160D: [F1]BAA[S2R2U(F,B2,M)]XXXXXXZBAZA[XX]M[XXXX][XX]XX..

ELECTRICAL INSTALL KIT FOR 705548-00 305588-00. FAA-approved aircraft parts kit. Application: aviation aftermarket general fitment — verify part number against your aircraft IPC before ordering. Cross-reference this part by its manufacturer part number 305588-00 against your aircraft's illustrated parts catalog (IPC) or maintenance manual to confirm direct interchangeability. All inventory ships from our Arizona warehouse with FAA 8130-3 documentation where applicable, and traceability paperwork is available on request for parts requiring it. Live pricing, real-time stock status, and secure online checkout for this part are available at American Aviation Parts...

FIVE MARC 70 MODULE ENCLOSURE/REQUIRED W/SA 3 NVG MODULE 305018-01..

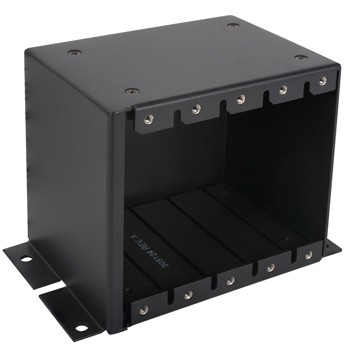

FIVE MARC 70 MODULE ENCLOSURE/SRU5 305018-00SRU 5 Five Module Enclosure | For MARC70 Interface ModulesThe SRU 5 enclosure is designed to house up to five MARC70 Interface Modules with a PMA Approved installation solution. The SRU 5 is a five module enclosure allowing a complete installation solution for combined interface modules. Enclosure provides easy card exchangingHouses up to 5 cardsFor MARC70 modules4-hole mountingPMA certifiedProduct CodesMfr Part No:305018-00ECCN:7A994MIL SPEC:6030-01-562-6846NSN:5945-01-534-0755PMA:PQ0894SWSCHEDULE B CODE:9014.20.8040Weight: 0.80 lb Dimensions: 5.4 x 3.65 x 4 in. with module installed Temperature: -55ºC to 70ºC Altitude: 70,000 ft..

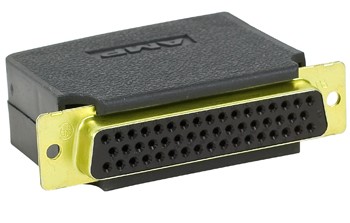

INSTALL KIT FOR MARC 70 305061-00MARC-70 Install Kit | D Sub ConnectorThe 305061-00 is a 50 socket D Sub connector for use with installation of MARC-70 interface modules.Kit Includes:Black plastic housing50 socketsHardware Product CodesMfr Part No:305061-00ECCN:EAR99SCHEDULE B CODE:8536.69.4040..
