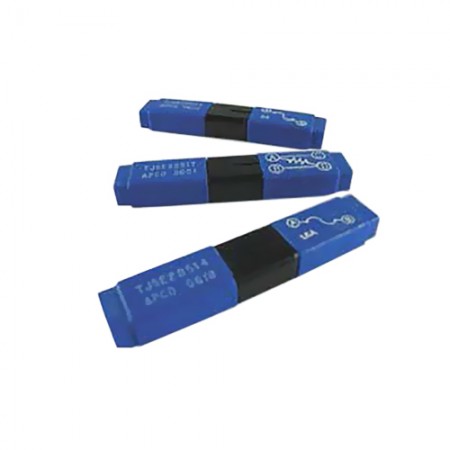

Terminal Junction Splices provide a quick and efficient solution for customer wiring requirements. Single and dual wire splices meet MIL-T-81714/11 & 12 requirements and are highly resistant to temperature and fluids. These modules can be supplied with a wide variety of diodes, resistors, capacitors, and fuses within the splice itself. These splices meet MIL-81714/24 and allow users to incorporate them into a wire bundle without making changes in panels or boards.
This series I terminal junction splice (Alternate Part# M817141120) is a single wire splice and accepts size 16/22 AWG wire sizes.
Product Codes | |
|---|---|
| Mfr Part No: | M81714/11-20D |
| ECCN: | EAR99 |
| SCHEDULE B CODE: | 8535.90.0040 |
Size: 16/20Operating Temperature: -65°C to 200°CInsulation Resistance: 5,000 MΩ, Min.Dielectric Withstanding Voltage: 1,500 VRMS @ sea level 200 VRMS @ 100,000 ftVibration and Shock: Per AS-81714 Paragraph 3.5.5 & 3.5.8Body Material: Polyethermide per ASTM-D-5205Grommet Material: Silicone rubber per A-A-50588Internal Contact Material: copper-alloy with gold finish
- Stock: Out of Stock - On Backorder
- Manufacturer Part #: M81714/11-20D
